5MP IR Dome Camera

Home › Products › CP PLUS Analog Camera › 5MP IR Dome Camera

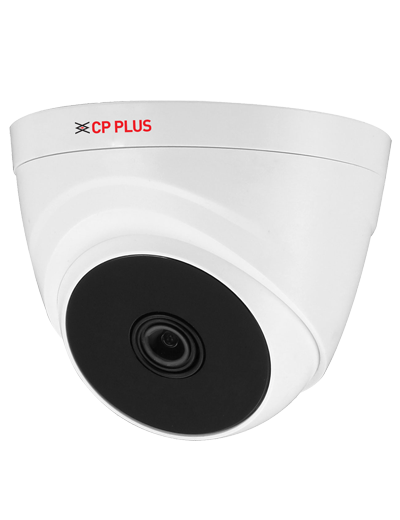

5MP IR Dome Camera
5MP IR Dome Camera

MOQ : 10 Piece

Business Type Manufacturer
Brand Name CP Plus
Image Sensor 1/2.7 Inch 5MP PS CMOS (0.9407cm)
Minimum Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
Click to view more

Preferred Buyer From

Location India ( West Bengal, Assam, Bihar, Chhattisgarh, Jharkhand, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Sikkim, Arunachal Pradesh)
Request to Call Send Enquiry

Product Details

Shutter Speed
PAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s
Lens
3.6mm (2.8mm optional)
Lens Type
Fixed lens/ Fixed Iris
S/N Ratio
More than 65dB
Resolution
5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Mount Type
M12
Max. Aperture
F2.0
Angle of View
3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
Close Focus Distance
2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
DORI Distance
2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect)
Back Light Compensation
BLC/HLC/DWDR
Whit Balance
Auto/ Manual
Video Streaming
CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
ICR
Auto (ICR)/Manual
IR
IR Range of 20 Mtr.
Gain Control
AGC
OSD Menu
Multi-language
Mirror
Off/On
Privacy Masking
Off / On (8 area, rectangle)
Smart IR
Auto/ Manual
Casing
Plastic
Operating Temperature
-40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH
Power Source
12V DC ±30%
Power Consumption
Max 2.7W (12V DC, IR on)
Dimension
φ85.4 mm × 68.8 mm (φ3.36 × 2.71
Weight
0.09Kg.
Product Code
CP-USC-DC51PL2-V3

System Overview
Analog cameras can be advantageous in more waysthan one – they are economical, especially for large scale setups, and are simple to install. However, one of the major downsides of earlier analog cameras was the image quality, which is critical in the present times. With subsequent technological upgrades over the years, HD resolution was introduced in analog CCTV systems. This served as a major breakthrough as high quality imagery was only available in IP system which was comparatively a costlier option.


Another challenge with analog systems was its compatibility constraint. Newer versions of analog cameras would not pair up with older versions. CP PLUS introduced the revolutionary UNI + technology which supported all analog & HD video formats including CVBS.

  • 1/2.7” 5MP CMOS Image Sensor (0.9407cm)
  • Max. 25fps@5MP (16:9 video output)
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 3.6mm fixed lens (2.8mm optional)
  • IR Range of 20 Mtrs.
  • OSD Menu, control over coaxial cable, 2D-DNR
  • CVI/CVBS/AHD/TVI Switchable


Functions
OSD Menu Support
CP PLUS HD analog cameras come with their own menu using which the camera settings can be managed, for instance, the signal type can be changed and other sensor level adjustments be made.

IR LED
Numerous IR LEDs provide detailed images even in very low light conditions. These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs.

UNI+ Technology
CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and HDx, making upgrading simple and hassle-free.

Power Protection
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions.

Plug & Play
CP PLUS Analog HD cameras are simple to configure and install.

Yes! I am interested


Dimension

Dimension
